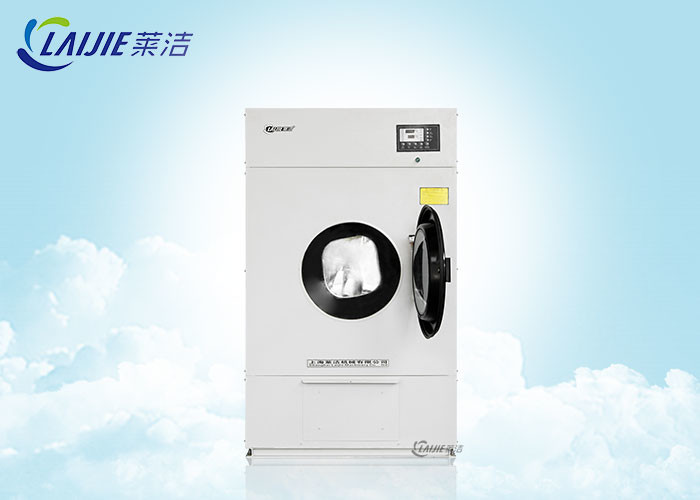

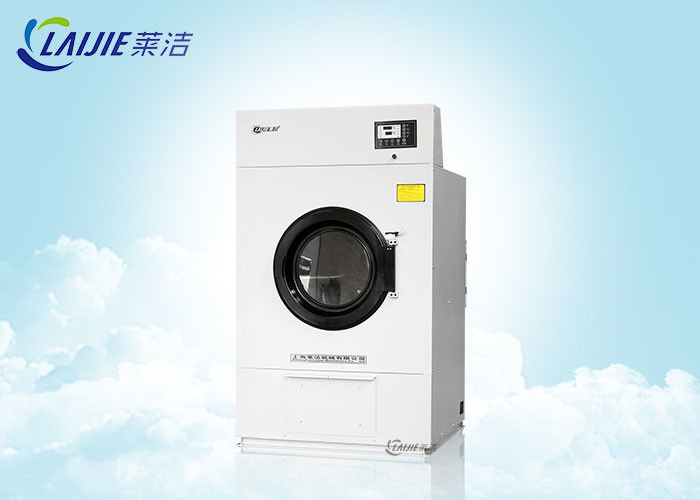

GDZ-30 Heavy duty front loading clothes drying machine commercial dryer machine

GDZ-30 Heavy duty front loading clothes drying machine commercial dryer machine

    • GDZ-30 Heavy duty front loading clothes drying machine commercial dryer machine
    • GDZ-30 Heavy duty front loading clothes drying machine commercial dryer machine
  • GDZ-30 Heavy duty front loading clothes drying machine commercial dryer machine

    Product Details:

    Place of Origin: China
    Brand Name: LAIJIE
    Certification: ISO9001
    Model Number: GDB-30

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiable
    Packaging Details: Plywood wooden packaging
    Delivery Time: 15 days after received payment
    Payment Terms: D/A, L/C, , D/P, T/T, Western Union, MoneyGram
    Supply Ability: 350 Pieces
    Contact Now
    Detailed Product Description
    Product Name: GDZ-30 Heavy Duty Front Loading Clothes Drying Machine Commercial Dryer Machine Condition: New
    Color: Silver Gray Voltage: 220v/380v
    Weight: 480kg Warranty: 12 Months

    GDZ-30 Heavy duty front loading clothes drying machine commercial dryer machine



    The technical :



    1. Steam heating, electric heating, gas heating for choice.

    2. The machine uses large-scale heating device to enhance drying efficiency.

    3. Insulation layer is added to the outer cylinder of the frame to reduce heat loss, save energy and protect environment.

    4. The transmission system adopts two-stage triangular belt deceleration drive, especially narrow V-belt drive, which has strong transmission ability, good wear resistance, high stability and convenient daily maintenance.

    5. Full computer control system, operator can set temperature, time and positive and negative programs according to the different drying cloth, so that the cloth can be better protected.

    6.large-diameter door design, which is convenient for loading and taking clothes. The doorway design adopts the form of anti-overshoot, which effectively avoids clothing scratches and pulling.



    Product specification :



    Model Unit GDZ-30 GDZ-50 GDZ-70 GDZ-100
    Rated Capacity kg 30 50 70 100
    Drum Diameter mm 990 1190 1270 1445
    Drum Depth mm 940 850 860 1190
    Drum speed rpm 35 32 30 28
    Power Supply V/P/Hz 380/3/50 380/3/50 380/3/50 380/3/50
    Motor power kw 1.1 1.1 1.1 2.2
    Fan power kw 1.1 1.1 1.1 3
    Weight kg 480 550 650 900
    Width mm 1150 1330 1420 1590
    Depth mm 1590 1520 1540 1900
    Height mm 1940 2200 2350 2450
    Steam Pressure* Mpa 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
    Electric Heating Power* kw 22 35 52 72
    Gas pressure* Pa 5000 5000 5000 5000



    Our competitive advantage :



    1, Longtime to offer OEM service for renowned customers in the washing machine industry.

    2, Strict inspection in each product processing :material inspection(IQC) processing inspection (IPQC) and final inspection (FQC)

    3,The product is mature ,the repair rate is low.

    4, Have strong R&D team, customers get new technology easily.

    5, Less investment, make money fast.

    6, Quality & service guaranteed





    Company introduction :



    Shanghai LAIJIE Machinery Co.,Ltd is a professional and international enterprise integrating development , manufacturing,marketing,and servicing of commercial and industrial laundry equipment. Located in beautiful Shanghai Fengcheng industrial park. Registered in 1992 and have 120 staff , annual production capacity are 3000 sets. Our main products are industrial washer extractor,automatic dryer,Hydro extractor ,Ironing machine ,folding machine and other laundry equipment. We have cooperated with trading companies and exported products to the United States, Middle east , Vietnam, Myanmar ,Canada, Germany, Spain, Pakistan, Malaysia, Indonesia, South Africa, Tanzania, Chile, more than 30 countries.

    From 1999 Shanghai began to provide accessories and complete machines for several well-known enterprises in laundry industry. During this period it help us accumulated a lot of experience of management and quality control system. We have strict quality control system in accordance with ISO9001 Standard, strict inspection in each product processing :material inspection(IQC) processing inspection (IPQC) and final inspection (FQC), which ensure every machine is perfect before sending out.

    Today shanghai Laijie have more than 20 sales branch and agents in domestic market. Beijing Laijie,Wuhan Laijie, Nantong Laijie ,Hangzhou Laijie , Kunshan Laijie , Weihai Laijie, Zhengzhou Laijie, Xiamen Laijie. At the same time we are actively development overseas market ,all staff of Laijie will continue to engaging in developing new washing machine to satisfy your need.
