Place of Origin:
China
Brand Name:
Laijie
Certification:
CE
Model Number:
GDB-50
Contact Us

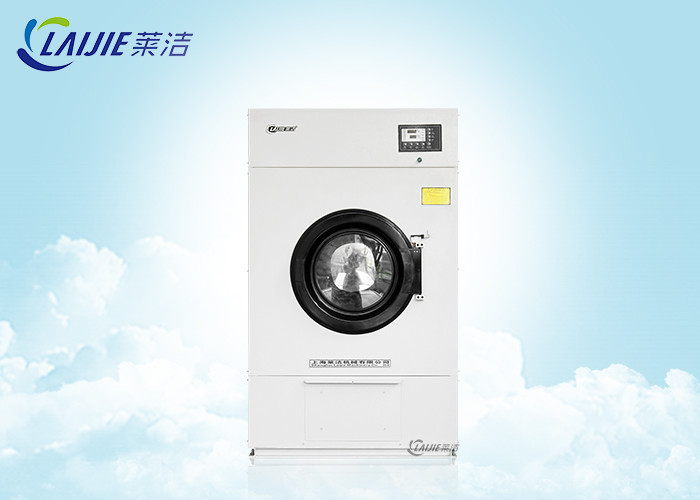

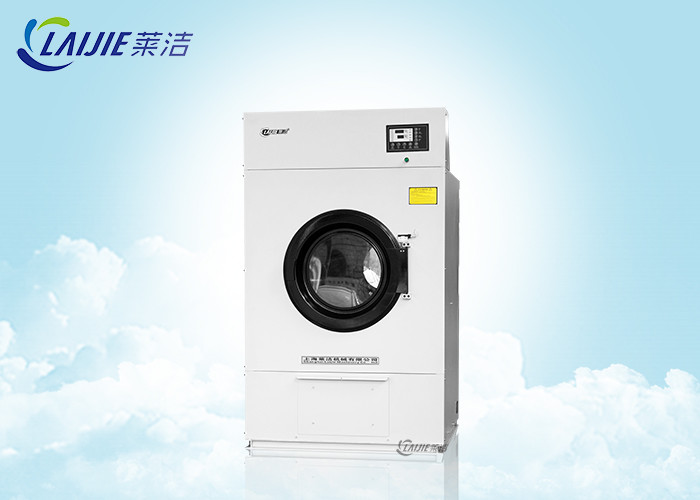

Heavy duty commercial laundry dryer clothing drying machine for laundry plant
The technical :
1, Large diameter door designed ,it is convenient for loading . The door with reverse overshoot design to effectively avoid scratching and pulling cloth.
2, Computer control system,the operator can set different drying time and temperature according different fabric material .
3, The transmission system adopts two stage triangle belt deceleration drive, strong transmission ability, good wear resistance, high stability, and convenient maintenance.
Product specification :
| Model | Unit | GDB-35 | GDB-50 | GDB-70 | GDB-100 |
| Rated Capacity | kg | 35 | 50 | 70 | 100 |
| Drum Diameter | mm | 990 | 1190 | 1270 | 1445 |
| Drum Depth | mm | 940 | 850 | 860 | 1190 |
| Drum speed | rpm | 35 | 32 | 30 | 28 |
| Heating | Electric Heating | ||||
| Electric Heating Power | kw | 22 | 35 | 36 | 72 |
| Power Supply | V/P/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Motor Power | kw | 1.1 | 1.1 | 1.1 | 1.5 |
| Fan Motor Power | kw | 1.1 | 1.1 | 1.1 | 2.2 |
| Weight | kg | 480 | 550 | 650 | 900 |
| Dimension | mm | 1150*1590*1940 | 1330*1520*2200 | 1420*1540*2350 | 1590*1900*2450 |
Our competitive advantage :
1, Longtime to offer OEM service for renowned customers in the washing machine industry.
2, Strict inspection in each product processing :material inspection(IQC) processing inspection (IPQC) and final inspection (FQC)
3,The product is mature ,the repair rate is low.
4, Have strong R&D team, customers get new technology easily.
5, Less investment, make money fast.
6, Quality & service guaranteed
