Place of Origin:
Shanghai China
Brand Name:
LAIJIE
Certification:
ISO9001
Model Number:
YZI-3000
Contact Us

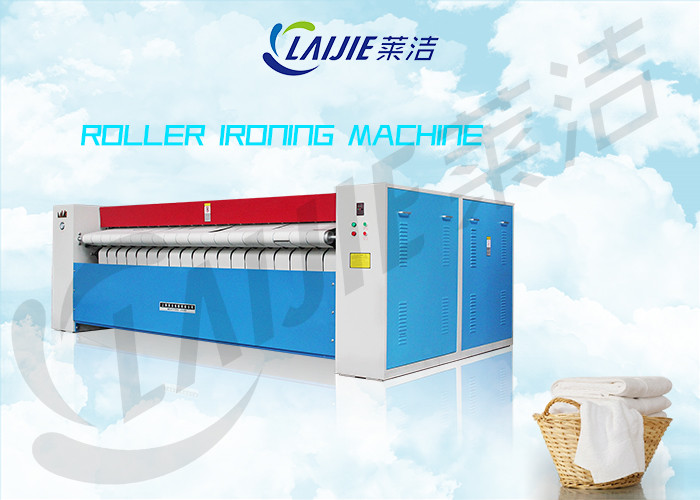

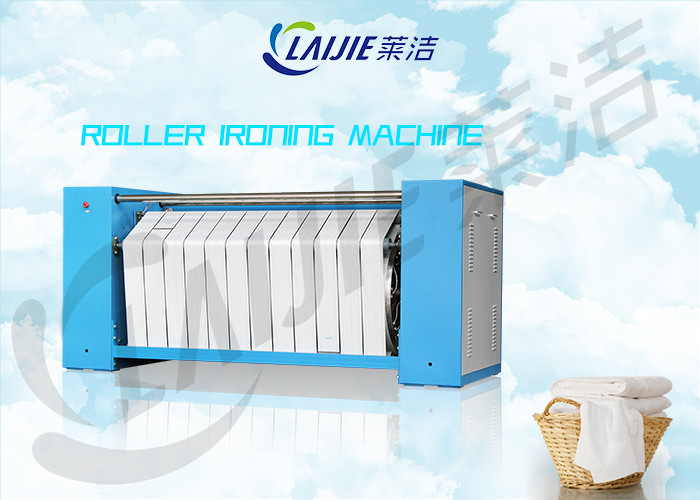

Fully automatic bed sheet ironing machine flat press iron for hotel
| Specification | Unit | YZI-3000 | YZI-3300 | YZII-3000 | YZII-3300 | YZIII-3000 | YZIII-3300 |
| Number of Roll | roll | 1 | 1 | 2 | 2 | 3 | 3 |
| Diameter of Roll | mm | 800 | 800 | 800 | 800 | 800 | 800 |
| Maximum Ironing Width | mm | 3000 | 3300 | 3000 | 3300 | 3000 | 3300 |
| Ironing Speed | m/min | 1-10 | 1-10 | 3-20 | 3-20 | 6-24 | 6-24 |
| Heating | Steam-Heating | ||||||
| Steam pressure | Mpa | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 |
| Power Supply | V/P/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Motor Power | kw | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 |
| Weight | kg | 1750 | 1800 | 3100 | 3200 | 4000 | 4300 |
| Width | mm | 4148 | 4448 | 4148 | 4448 | 4148 | 4448 |
| Depth | mm | 1330 | 1330 | 2280 | 2280 | 3200 | 3200 |
| Height | mm | 1420 | 1420 | 1420 | 1420 | 1420 | 1420 |
Packing information :
| Model | Roller Number | Packing size |
Gross Weight / Net Weight |
| YZI -3000 | 1 roller | 4100*1400*1460mm |
2300kg/1750kg |
| YZI-3300 | 1 roller | 4400*1400*1460mm |
2300kg/1800kg |
| YZII-3000 | 2 roller | 4100*1400*1460mm |
3800/3100kg |
| YZII-3300 | 2 roller | 4400*1400*1460mm |
3900kg/3200kg |
