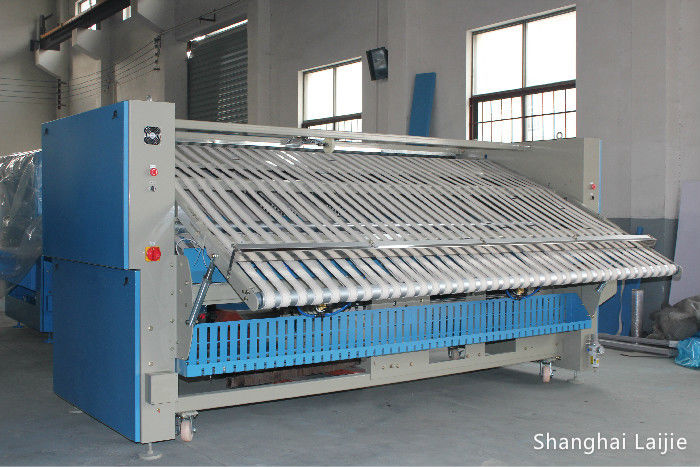

Industrial Laundry Equipment Sheet Folder Machine / Auto Folding Machine
Product advantage of Industrial Laundry Equipment Sheet Folder Machine / Auto Folding Machine :
1. Computer control with display touch screen,
2. Automatic lane selection by size of linen
3. Automatically select correct number of primary folds and cross folds by linen size
4. Frequency inverter drive with soft start to reduce stress on drive components.
5. START/STOP button pause and restart operation without interrupting folding in progress.
6. Heavy-duty motor with overloading protection.
Product specification of Industrial Laundry Equipment Sheet Folder Machine / Auto Folding Machine :
| Model | ZD3000 | ZD3300 |
| Max Folding LxW(mm) | 3000x3000 | 3300x3000 |
| Max Speed(m/min) | 50 | 50 |
| Layers(layer) | 5 | 5 |
| Air Pressure(Mpa) | 0.7 | 0.7 |
| Rated Input Power(kw) | 2.25 | 2.25 |
| Dimension(mm) | 4116x2800x1760 | 4416x2800x1760 |
| Total Weight(kg) | 1780 | 1830 |
Troubleshooting:
1. Common failures: slow heating of the roller roller
(1), cause: low steam pressure .Solution: increase steam pressure
(2), cause: there is water inside the main ironing roller, and the drain valve is not working properly.
Solution: repair or replace the steam trap and drain the main roller.
(3) the damage of the siphon tube or the wrong position .Solution: maintenance siphon
2. Common failures: the fabric is often damaged in ordinary times.
(1), cause: the ironing belt is too tight Solution: adjust the tightness of the ironing belt
(2), ironed buckles have burr. Solution: repair burr
