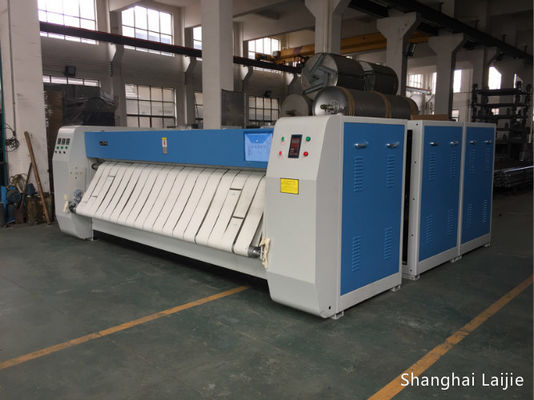

Stainless Steel Roller Sheet Ironing Machine For Laundry Shop YZI-3300
Product specifications of Stainless Steel Roller Sheet Ironing Machine For Laundry Shop YZI-3300 :
1, Large diameter(Φ800mm) roller drum,stainless steel, surface is smooth.
2, Frame and auxiliary,high-quality steel carbon structures, strong and durable.
3, Variable frequency, variable speed, according to fabric, moisture, steam supply, etc.
4, Bed sheets ironing machine: Simple control with Start/Stop button.
5, Sealed rotary joints, prevent leakage, safety and reliability, save energy.
The operation of Stainless Steel Roller Sheet Ironing Machine For Laundry Shop YZI-3300 :
1, before pressing the fabric, clean the surface of the cylinder first, then wipe the surface of the roller and the parts of the machine with soft cloth to ensure that the machine is clean.
2, the motor and its control part must pass the insulation check to check whether the air machine is running normally.
3, check whether the oil hole is smooth, and note the amount of lubricating oil, add 20 or 40 oil in the reducer. 4, adjust the conveyor belt to ensure that the tension is moderate, not too tight or too loose.
Product specification of Stainless Steel Roller Sheet Ironing Machine For Laundry Shop YZI-3300 :
| Model Unit : | YZI-3300 |
| Number of roll Roll : | 2 rollers |
| Drum Diameter : | 800mm |
| Max ironing width: | 3300mm |
| Ironing speed : | 1-10 M/min |
| Ironing temperature : | 200 ºC |
| Motor power : | 1.1KW |
| Rated voltage : | 380V/50Hz |
| L*W*H : | 4320*1300*1260 mm |
| Machine weight : | 1800kg |
