Place of Origin:
Shanghai China
Brand Name:
Laijie
Certification:
CE
Model Number:
YZII-3300
Contact Us

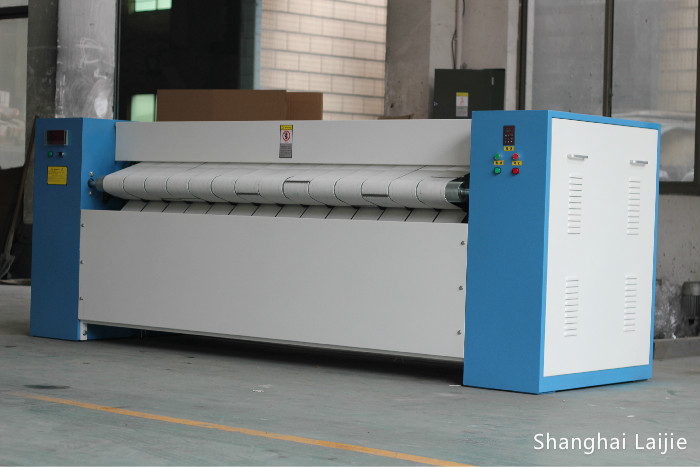

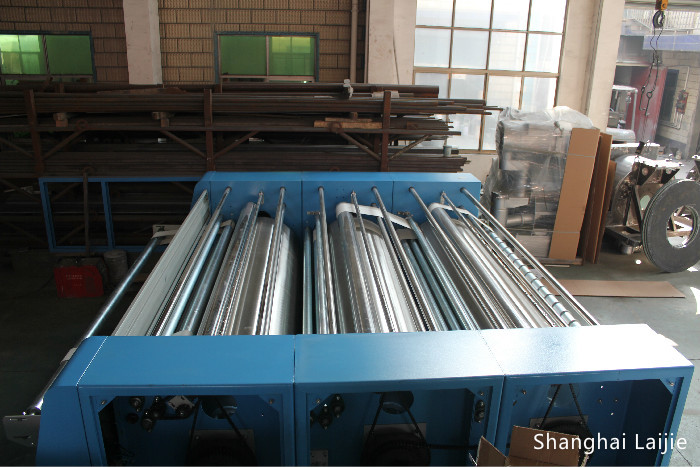

Heavy duty (1-4 cylinders/rollers) Linen ironing machine, commercial bed sheet ironer
Product specifications of Heavy duty (1-4 cylinders/rollers) Linen ironing machine, commercial bed sheet ironer :
1, Large diameter(Φ800mm) roller drum,stainless steel, surface is smooth.
2, Frame and auxiliary,high-quality steel carbon structures, strong and durable.
3, Variable frequency, variable speed, according to fabric, moisture, steam supply, etc.
4, Bed sheets ironing machine: Simple control with Start/Stop button.
5, Sealed rotary joints, prevent leakage, safety and reliability, save energy.
The operation of Heavy duty (1-4 cylinders/rollers) Linen ironing machine, commercial bed sheet ironer:
1, before pressing the fabric, clean the surface of the cylinder first, then wipe the surface of the roller and the parts of the machine with soft cloth to ensure that the machine is clean.
2, the motor and its control part must pass the insulation check to check whether the air machine is running normally.
3, check whether the oil hole is smooth, and note the amount of lubricating oil, add 20 or 40 oil in the reducer. 4, adjust the conveyor belt to ensure that the tension is moderate, not too tight or too loose.
Product specification of Full automatic ironing machine with steam generator and steam iron for laundry and garment industry:
| Model Unit : | YZI-3300 |
| Number of roll Roll : | 2 rollers |
| Drum Diameter : | 800mm |
| Max ironing width: | 3300mm |
| Ironing speed : | 1-10 M/min |
| Ironing temperature : | 200 ºC |
| Motor power : | 1.1KW |
| Rated voltage : | 380V/50Hz |
| L*W*H : | 4320*1300*1260 mm |
| Machine weight : | 1800kg |
FAQ
♦ How long have you engaged in this industry ?
We are professional washing machine factory found in 1992,there are more than 20 years of experience in OEM and ODM factory in Shanghai .exported machine to Southeast Asia, Middle East, Russia, Europe and the United States
♦ What do you offer technical support after sell ?
We have electronic version manual book of the product , diagnostic book for common machine problems, and we also have video to guid how to installa machine
♦ How do you ensure quality control ?
We have stick quality system in accordance with ISO9001 Standard.stick inspection in each product processing : material inspection(IQC), product inspection(IPQC) and final inspection (FQC) ,which ensure each machine is in good quality before sending out.
