Heavy duty 25 kg industrial commercial tumble dryer

Heavy duty 25 kg industrial commercial tumble dryer

  • Heavy duty 25 kg industrial commercial tumble dryer
  • Heavy duty 25 kg industrial commercial tumble dryer
  • Heavy duty 25 kg industrial commercial tumble dryer
Heavy duty 25 kg industrial commercial tumble dryer
Product Details:
Place of Origin: China
Brand Name: LAIJIE
Certification: CE
Model Number: HG-25
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plywood wooden packaging Heavy duty 25 kg industrial commercial tumble dryer
Delivery Time: 15 days after received payment Heavy duty 25 kg industrial commercial tumble dryer
Payment Terms: D/A, L/C, , D/P, T/T, Western Union, MoneyGram
Supply Ability: 350 Pieces
Contact Now
Detailed Product Description
Product Name: Industrial Commercial Tumble Dryer Usage: Laundry Business
Voltage: 380V Size: 950*1300*1715mm
Heating: Electric /gas /steam Certificate: CE
High Light:

25 kg industrial commercial tumble dryer

,

Heavy duty commercial tumble dryer

,

25 kg commercial gas tumble dryer

Heavy duty 25 kg industrial commercial tumble dryer



The technical of Heavy duty 25 kg industrial commercial tumble dryer :


1. Steam heating, electric heating, gas heating for choice.
2. The machine uses large-scale heating device to enhance drying efficiency.
3. Insulation layer is added to the outer cylinder of the frame to reduce heat loss, save energy and protect environment.
4. The transmission system adopts two-stage triangular belt deceleration drive, especially narrow V-belt drive, which has strong transmission ability, good wear resistance, high stability and convenient daily maintenance.
5. Full computer control system, operator can set temperature, time and positive and negative programs according to the different drying cloth, so that the cloth can be better protected.
6.large-diameter door design, which is convenient for loading and taking clothes. The doorway design adopts the form of anti-overshoot, which effectively avoids clothing scratches and pulling.

Product specification of Heavy duty 25 kg industrial commercial tumble dryer :


Model Unit HG HG HG
Rated capacity kg 20 25 30
Drum diameter mm 850 850 990
Drum depth mm 700 900 940
Motor power kW 0.55 0.55 1.1
Fan power kW 0.55 0.55 1.1
Electric heating power kW 20 20 22
Steam interface DN 20 20 20
Steam pressure MPa 0.4-0.6 0.4-0.6 0.4-0.6
Working pressure of compressed air MPa 0.2-0.4 0.2-0.4 0.4-0.6
Rated voltage V 380 380 380
Length mm 950 950 1150
Width mm 1200 1300 1590
Height mm 1715 1715 1940
New weight kg 320 350 480



Company introduction :

Heavy duty 25 kg industrial commercial tumble dryer 0

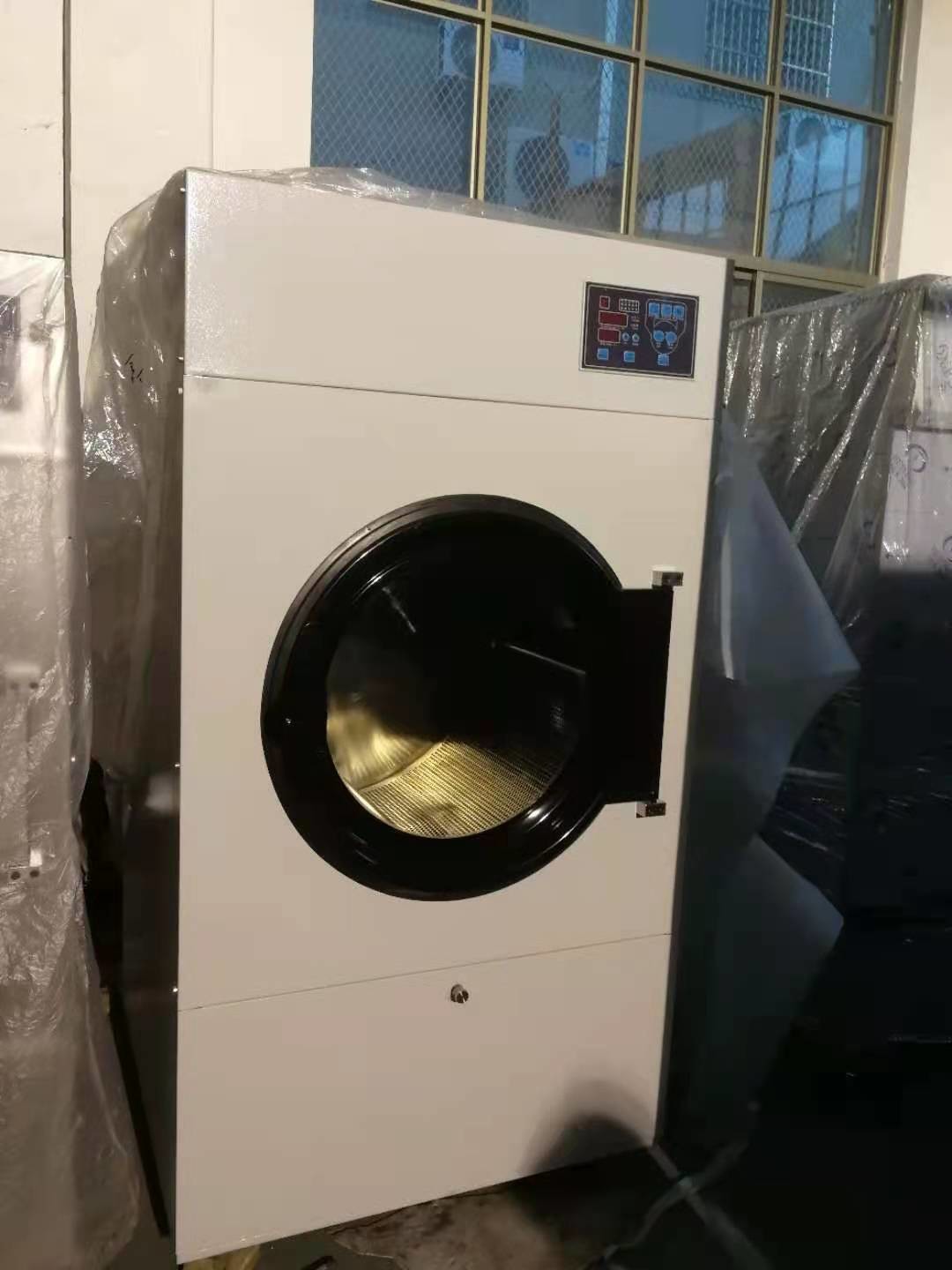

 Product show in workshop



Heavy duty 25 kg industrial commercial tumble dryer 1
